Full-Stacked Area Series View¶

Full-Stacked Area Series Views (100% Stacked Area charts) are used to show proportional relationships between two or more data series. Each Full-Stacked Area Series is rendered as a filled area stacked on top of the previous Full-Stacked Area Series. The series' thickness is determined by its percentage contribution to the total. The top line always corresponds to 100%.

chart-views-full-stacked-area-series-view

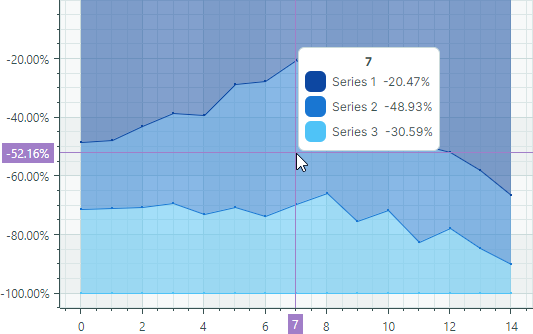

If all Full-Stacked Area Series in the chart control only have negative values, the series are arranged in the direction of the negative Y axis. In this case, the bottom line indicates -100%.

chart-views-full-stacked-area-series-view-negative

Use Full-Stacked Area Series Views to show only positive or only negative data in the same chart control.
If any Full-Stacked Area Series contains a mix of positive and negative values, all negative values are treated as zeroes.

The Full-Stacked Area Series View is encapsulated by the CartesianFullStackedAreaSeriesView class.

Create Full-Stacked Area Series Views¶

You typically use the Full-Stacked Area Series presentation to show proportional relationships between two or more data series. Steps to create a Full-Stacked Area chart include:

Create a CartesianSeries object for each data series and add it to the CartesianChart.Series collection.
Set the CartesianSeries.View property to a CartesianFullStackedAreaSeriesView object.
Use the CartesianSeries.DataAdapter property to supply data for the series.
Format Y-axis values as a percentage by customizing the scale options of the Y axis.

In the Full-Stacked Area Series View, the calculated Y-axis values (and so labels) are in the range between 0 and 1. To display these values as percentages (0%-100%) along the Y axis and in Crosshair labels, set the ScaleOptions.LabelFormatter and ScaleOptions.CrosshairLabelFormatter properties to a PercentLabelFormatter object (or a custom IAxisLabelFormatter object). See the example below.

The following code snippets show how to create the Full-Stacked Area chart consisting of three data series in XAML and code-behind.

xmlns:mxc="https://schemas.eremexcontrols.net/avalonia/charts"

<mxc:CartesianChart x:Name="chartControl">
    <mxc:CartesianChart.Series>
        <mxc:CartesianSeries Name="areaSeries1" DataAdapter="{Binding DataAdapter1}" >
            <mxc:CartesianFullStackedAreaSeriesView Color="#ff07575b"
                                                Transparency="0.5" MarkerSize="3" ShowMarkers="True"/>
        </mxc:CartesianSeries>
        <mxc:CartesianSeries Name="areaSeries2" DataAdapter="{Binding DataAdapter2}" >
            <mxc:CartesianFullStackedAreaSeriesView Color="#ff763626"
                                                Transparency="0.5" MarkerSize="3" ShowMarkers="True"/>
        </mxc:CartesianSeries>
        <mxc:CartesianSeries Name="areaSeries3" DataAdapter="{Binding DataAdapter3}" >
            <mxc:CartesianFullStackedAreaSeriesView Color="#fffc913a"
                                                Transparency="0.5" MarkerSize="3" ShowMarkers="True"/>
        </mxc:CartesianSeries>
    </mxc:CartesianChart.Series>

    <!--Format Y values as percentage-->
    <mxc:CartesianChart.AxesY>
        <mxc:AxisY ShowTitle="False">
            <mxc:AxisY.ScaleOptions>
                <mxc:NumericScaleOptions>
                    <mxc:NumericScaleOptions.LabelFormatter>
                        <mxc:PercentLabelFormatter />
                    </mxc:NumericScaleOptions.LabelFormatter>
                    <mxc:NumericScaleOptions.CrosshairLabelFormatter>
                        <mxc:PercentLabelFormatter />
                    </mxc:NumericScaleOptions.CrosshairLabelFormatter>
                </mxc:NumericScaleOptions>
            </mxc:AxisY.ScaleOptions>
        </mxc:AxisY>
    </mxc:CartesianChart.AxesY>
</mxc:CartesianChart>

double[] args = new double[] { 1, 2, 3, 4, 5 };
double[] values1 = new double[] { 3, 2, 1, 2, 4 };
double[] values2 = new double[] { 1, 2, 1, 2, 2 };
double[] values3 = new double[] { 2, 1, 2, 3, 2 };

CartesianSeries series1 = new CartesianSeries();
series1.DataAdapter = new SortedNumericDataAdapter(args, values1);
series1.View = new CartesianFullStackedAreaSeriesView()
{
    Color = Color.FromUInt32(0xff07575b),
    Transparency = 0.5,
    ShowMarkers = true,
    MarkerSize = 3
};
CartesianSeries series2 = new CartesianSeries();
series2.DataAdapter = new SortedNumericDataAdapter(args, values2);
series2.View = new CartesianFullStackedAreaSeriesView()
{
    Color = Color.FromUInt32(0xff763626),
    Transparency = 0.5,
    ShowMarkers = true,
    MarkerSize = 3
};
CartesianSeries series3 = new CartesianSeries();
series3.DataAdapter = new SortedNumericDataAdapter(args, values3);
series3.View = new CartesianFullStackedAreaSeriesView()
{
    Color = Color.FromUInt32(0xfffc913a),
    Transparency = 0.5,
    ShowMarkers = true,
    MarkerSize = 3
};

AxisY axisY = new AxisY();
axisY.Title = "Income";
// Format Y values as percentage
axisY.ScaleOptions = new NumericScaleOptions()
{
    LabelFormatter = new PercentLabelFormatter(),
    CrosshairLabelFormatter =  new PercentLabelFormatter()
};
chartControl.AxesY.Add(axisY);

chartControl.Series.Add(series1);
chartControl.Series.Add(series2);
chartControl.Series.Add(series3);

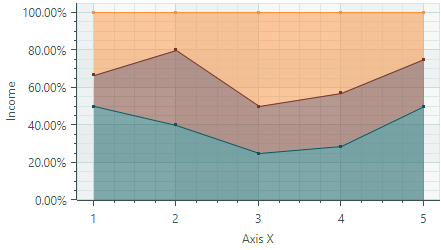

The result is shown below:

chart-full-stacked-area-small-example

Example - Create a Full-Stacked Area Chart Using the MVVM Design Pattern¶

The following example creates three series of the Full-Stacked Area type from a View Model.

The CartesianChart.SeriesSource property is bound to the SeriesCollection property in the View Model. This collection is a source of SeriesViewModel objects used to initialize individual series in the Chart control.
The CartesianChart.SeriesTemplate property is set to a template that creates a series (a CartesianSeries object) of the Full-Stacked Area type from each SeriesViewModel object. The series data, title and color are determined by the SeriesViewModel.DataAdapter, SeriesViewModel.Title, and SeriesViewModel.Color properties, respectively.
The ScaleOptions.LabelFormatter and ScaleOptions.CrosshairLabelFormatter properties are set to a PercentLabelFormatter object to format Y-axis values as percentages.

chart-views-full-stacked-area-series-view-vm-example

<!-- MainWindow.axaml -->
<mx:MxWindow xmlns="https://github.com/avaloniaui"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:vm="using:ChartStackedAreaSeriesViewExample.ViewModels"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:mx="https://schemas.eremexcontrols.net/avalonia"
             xmlns:mxc="https://schemas.eremexcontrols.net/avalonia/charts"
             mc:Ignorable="d" d:DesignWidth="800" d:DesignHeight="450"
             x:Class="ChartStackedAreaSeriesViewExample.Views.MainWindow"
             x:DataType="vm:MainWindowViewModel"
             Icon="/Assets/EMXControls.ico"
             Title="ChartStackedAreaSeriesViewExample">
    <Design.DataContext>
        <vm:MainWindowViewModel/>
    </Design.DataContext>
    <Grid ColumnDefinitions="*" Margin="10">

        <mxc:CartesianChart x:Name="chartControl" BorderThickness="0" SeriesSource="{Binding SeriesCollection}" >
            <mxc:CartesianChart.SeriesTemplate>
                <DataTemplate x:DataType="vm:SeriesViewModel">
                    <mxc:CartesianSeries DataAdapter="{Binding DataAdapter}" SeriesName="{Binding Title}">
                        <mxc:CartesianFullStackedAreaSeriesView
                        Color="{Binding Color}"
                        Transparency="0.5"
                        ShowMarkers="True"
                        MarkerSize="3"
                        Thickness="1" />
                    </mxc:CartesianSeries>
                </DataTemplate>
            </mxc:CartesianChart.SeriesTemplate>
            <mxc:CartesianChart.AxesX>
                <mxc:AxisX Name="xAxis" Title="Months" ShowMinorTickmarks="False" >
                    <mxc:AxisX.ScaleOptions>
                        <mxc:NumericScaleOptions GridSpacing="1" LabelFormatter="{Binding ArgsLabelFormatter}" />
                    </mxc:AxisX.ScaleOptions>
                </mxc:AxisX>
            </mxc:CartesianChart.AxesX>
            <mxc:CartesianChart.AxesY>
                <mxc:AxisY Title="Shipped Orders">
                    <mxc:AxisY.ScaleOptions>
                        <mxc:NumericScaleOptions>
                            <mxc:NumericScaleOptions.LabelFormatter>
                                <mxc:PercentLabelFormatter />
                            </mxc:NumericScaleOptions.LabelFormatter>
                            <mxc:NumericScaleOptions.CrosshairLabelFormatter>
                                <mxc:PercentLabelFormatter />
                            </mxc:NumericScaleOptions.CrosshairLabelFormatter>
                        </mxc:NumericScaleOptions>
                    </mxc:AxisY.ScaleOptions>
                </mxc:AxisY>
            </mxc:CartesianChart.AxesY>
            <mxc:CartesianChart.CrosshairOptions>
                <mxc:CrosshairOptions SeriesLabelMode="OneForAllSeries"/>
            </mxc:CartesianChart.CrosshairOptions>
        </mxc:CartesianChart>
    </Grid>
</mx:MxWindow>

// MainWindow.axaml.cs
using ChartStackedAreaSeriesViewExample.ViewModels;
using Eremex.AvaloniaUI.Controls.Common;

namespace ChartStackedAreaSeriesViewExample.Views;

public partial class MainWindow : MxWindow
{
    public MainWindow()
    {
        InitializeComponent();
        this.DataContext = new MainWindowViewModel();
    }
}

// MainWindowViewModel.cs
using Avalonia.Media;
using CommunityToolkit.Mvvm.ComponentModel;
using Eremex.AvaloniaUI.Charts;
using System;
using System.Collections.ObjectModel;

namespace ChartStackedAreaSeriesViewExample.ViewModels;

public partial class MainWindowViewModel : ObservableObject
{
    [ObservableProperty]
    ObservableCollection<SeriesViewModel> seriesCollection = new();

    [ObservableProperty] FuncLabelFormatter argsLabelFormatter = new(o => String.Format("{0:n0}", o));
    public MainWindowViewModel()
    {
        double[] args = new double[] { 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 };
        double[] values1 = new double[] { 10, 15, 20, 18, 10, 8, 12, 14, 15, 20, 17, 20 };
        double[] values2 = new double[] { 10, 5, 5, 10, 20, 20, 17, 15, 20, 25, 27, 30 };
        double[] values3 = new double[] { 15, 10, 15, 25, 20, 22, 15, 17, 20, 20, 15, 20 };

        SeriesCollection.Add(new SeriesViewModel { Title = "Summit Mountain Logistics", Color = Color.FromUInt32(0xFFDB643B), DataAdapter = new SortedNumericDataAdapter(args, values1) });
        SeriesCollection.Add(new SeriesViewModel { Title = "Heartland Distribution", Color = Color.FromUInt32(0xFFEBB443), DataAdapter = new SortedNumericDataAdapter(args, values2) });
        SeriesCollection.Add(new SeriesViewModel { Title = "Intercontinental Dispatch", Color = Color.FromUInt32(0xFF6DA0A4), DataAdapter = new SortedNumericDataAdapter(args, values3) });
    }
}

public partial class SeriesViewModel : ObservableObject
{
    [ObservableProperty] string title;
    [ObservableProperty] Color color;
    [ObservableProperty] ISeriesDataAdapter dataAdapter;
}

Data for the Full-Stacked Area Series View¶

You can use the following data adapters to provide data for Full-Stacked Area Series Views:

Numeric X Values:

SortedNumericDataAdapter
FormulaDataAdapter

Date and Time X Values:

SortedDateTimeDataAdapter
SortedTimeSpanDataAdapter

Qualitative X Values:

QualitativeDataAdapter

Full-Stacked Area Series View Settings¶

Color — Specifies the color used to paint the series.
CrosshairMode — Specifies whether the crosshair's chart label snaps to the nearest data point, or displays an interpolated value. See Show an Exact or Interpolated Value in Crosshair Chart Labels.
MarkerImage — Gets or sets an image to use as custom point markers. If no image is specified, default square-shaped markers are displayed. You can use an SvgImage class instance to specify an SVG image.

The MarkerImage property is declared with the [Content] attribute, which allows you to define an image directly between the <CartesianFullStackedAreaSeriesView> tags.
```
<mxc:CartesianFullStackedAreaSeriesView>
    <SvgImage Source="avares://Demo/Assets/circle.svg" />
</mxc:CartesianFullStackedAreaSeriesView>
```
SVG files contain predefined colors for SVG elements. To make these colors match your data series color, you can either:
- Manually edit the source SVG image file beforehand
- Use the MarkerImageCss property to dynamically customize styles for SVG elements. The styles are applied when point markers are rendered.
MarkerImageCss — Specifies CSS styles for runtime customization of an SVG image defined by the MarkerImage property. The primary use case is replacing SVG element colors with the series color (Color). Include the {0} placeholder to insert the value of the Color property in the CSS code.

For example, when the MarkerImage property contains an SVG image with a circle element, the following CSS code styles the circle with an Orange fill (using the series color) and Dark Red border:
```
<mxc:CartesianFullStackedAreaSeriesView Color="orange" MarkerImageCss="circle {{fill:{0};stroke:darkred;}}">
    <SvgImage Source="avares://Demo/Assets/circle.svg" />
</mxc:CartesianFullStackedAreaSeriesView>
```
See also: Example - Create a Lollipop Series View and Use Custom SVG Markers.
MarkerSize — Specifies the size of point markers.
ShowInCrosshair — Specifies the visibility of the crosshair chart label for the current series. See Customize Chart Labels of the Crosshair.
ShowMarkers — Enables or disables point markers.
Thickness — Specifies the line thickness.
Transparency — A value between 0 and 1 which specifies the transparency level of filled areas:
- 0 means fully opaque
- 1 means fully transparent
