Step Area Series View¶

The Step Area Series View (CartesianStepAreaSeriesView) connects points with horizontal and vertical line segments, and paints filled areas.

chart-views-steparea-series-view

Data for the Step Area Series View¶

You can use the following data adapters to provide data for Step Area Series Views:

Numeric X Values:

SortedNumericDataAdapter
FormulaDataAdapter

Date and Time X Values:

SortedDateTimeDataAdapter
SortedTimeSpanDataAdapter

Qualitative X Values:

QualitativeDataAdapter

Step Area Series View Settings¶

Color — Specifies the color used to paint the series.
CrosshairMode — Specifies whether the crosshair's chart label snaps to the nearest data point, or displays an interpolated value. See Show an Exact or Interpolated Value in Crosshair Chart Labels.

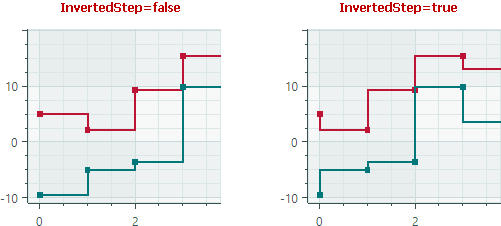

InvertedStep — Specifies the drawing order of step segments between neighboring data points. If InvertedStep is false (default), steps are composed of horizontal and then vertical segments. If InvertedStep is true, steps are composed of vertical and then horizontal segments.
MarkerImage — Gets or sets an image to use as custom point markers. If no image is specified, default square-shaped markers are displayed. You can use an SvgImage class instance to specify an SVG image.

The MarkerImage property is declared with the [Content] attribute, which allows you to define an image directly between the <CartesianStepAreaSeriesView> tags.
```
<mxc:CartesianStepAreaSeriesView>
    <SvgImage Source="avares://Demo/Assets/circle.svg" />
</mxc:CartesianStepAreaSeriesView>
```
SVG files contain predefined colors for SVG elements. To make these colors match your data series color, you can either:
- Manually edit the source SVG image file beforehand
- Use the MarkerImageCss property to dynamically customize styles for SVG elements. The styles are applied when point markers are rendered.
MarkerImageCss — Specifies CSS styles for runtime customization of an SVG image defined by the MarkerImage property. The primary use case is replacing SVG element colors with the series color (Color). Include the {0} placeholder to insert the value of the Color property in the CSS code.

For example, when the MarkerImage property contains an SVG image with a circle element, the following CSS code styles the circle with an Orange fill (using the series color) and Dark Red border:
```
<mxc:___222___ Color="orange" MarkerImageCss="circle {{fill:{0};stroke:darkred;}}">
    <SvgImage Source="avares://Demo/Assets/circle.svg" />
</mxc:___222___>
```
See also: Example - Create a Lollipop Series View and Use Custom SVG Markers.
MarkerSize — Specifies the size of point markers.
ShowInCrosshair — Specifies the visibility of the crosshair chart label for the current series. See Customize Chart Labels of the Crosshair.
ShowMarkers — Enables or disables point markers.
Thickness — Specifies the line thickness.
Transparency — A value between 0 and 1 which specifies the transparency level of filled areas:
- 0 means fully opaque
- 1 means fully transparent
