Export

The DataGrid control supports data export to the following formats:

  • XLSX (Microsoft Excel)
  • PDF
  • CSV
  • Image formats (PNG, JPEG, SVG, and WebP)

Note

The data export to XLSX, PDF and image formats is implemented in the Eremex.DocumentProcessing library. Ensure that this library in included in your project to use the export feature.

Export to XLSX Format

The Excel export engine is data-aware, meaning it preserves the grid's data shaping options in the output XLSX document, including:

  • Row grouping
  • Value formatting
  • Data sorting

After data is exported, you can process and analyze it in Microsoft Excel or another worksheet processing application.

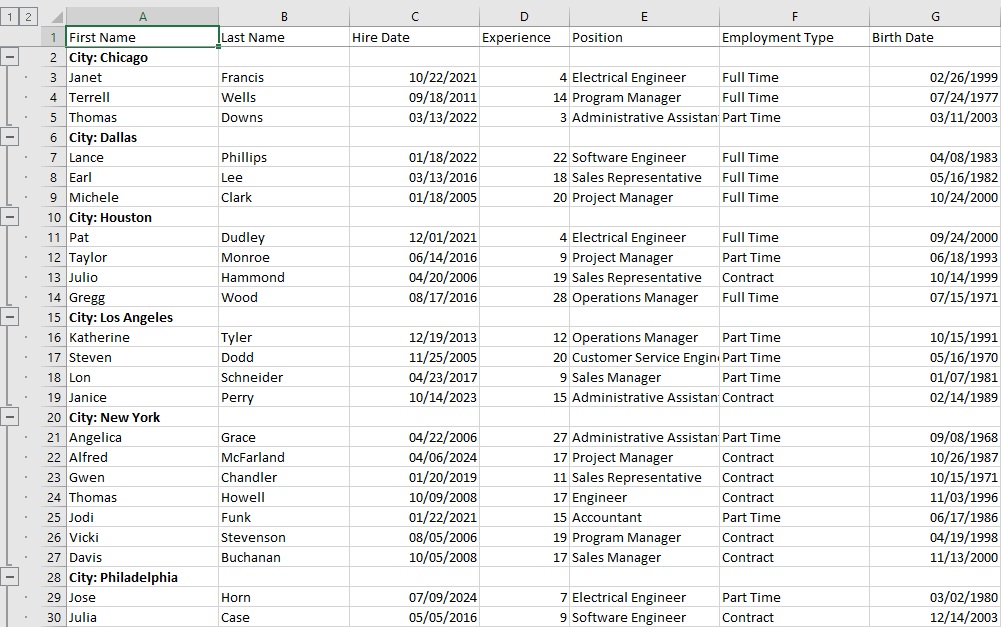

datagrid-export-result

Note

Cell formatting implemented using cell templates (GridColumn.CellTemplate) is not exported.

Use the following methods to export the control's data to XLSX format:

  • DataGridControl.ExportToXlsx(string fileName, XlsxExportOptions? options = null) — Exports data to a file.

  • DataGridControl.ExportToXlsx(Stream stream, XlsxExportOptions? options = null) — Exports data to a stream.

The optional options parameter (of type XlsxExportOptions) allows you to customize export settings. The XlsxExportOptions class exposes the following members:

  • ExportProgress event — Fires repeatedly during data export. The event's ExportProgressEventArgs.ProgressPercentage parameter indicates the progress as a percentage (0 to 100). You can use this event to display export progress to users in a customized way.

  • AllowFixedColumnHeaderPanel property (default is true) — Specifies whether the column header panel remains fixed at the top in the exported document.

  • ApplyFormattingToEntireColumn — Specifies whether cell formatting is applied to entire columns or individual cells in the output document.

  • AllowGrouping property (default is true) — Specifies whether group rows and the group hierarchy are exported. If AllowGrouping is false, data rows are only exported.

  • DocumentCulture — A custom CultureInfo object that determines formatting rules for numeric and date-time values in the output document.

    If the DocumentCulture property is not specified, the export engine uses the application's current culture.

  • ShowBands property (default is null) — Specifies whether the control's bands are included in the export.

    If ShowBands is null, the setting is specified by the control's DataGridControl.ShowBands property.

  • ShowColumnHeaders property (default is null) — Specifies whether the column header panel is included in the export.

    If ShowColumnHeaders is null, the setting is specified by the control's DataGridControl.ShowColumnHeaders property.

  • ShowHorizontalLines — Specifies whether horizontal lines between cells are visible in the output document.

  • ShowVerticalLines — Specifies whether vertical lines between cells are visible in the output document.

  • TextExportMode property — The default export mode of cell values.

    Available options include:

    • TextExportMode.Value — Exports cell values. If cell values are formatted in the DataGrid control, the export engine attempts to apply matching formatting to the exported values in the output document.
    • TextExportMode.Text — Exports cell display text. If cell values are formatted in the DataGrid control, the formatted string representation is exported.

    You can use the GridColumn.TextExportMode property to override the XlsxExportOptions.TextExportMode setting for individual columns.

    Note

    The export engine only takes into account cell formatting applied using the GridColumn.EditorProperties property. For example:

    <mxdg:GridColumn Width="*" FieldName="Salary">
    <mxdg:GridColumn.EditorProperties>
        <mxe:TextEditorProperties DisplayFormatString="c"/>
    </mxdg:GridColumn.EditorProperties>
</mxdg:GridColumn>

    Cell formatting applied using other approaches (for instance, with GridColumn.CellTemplate) is ignored during data export.

Export to PDF Format

The PDF rendering engine follows the WYSIWYG concept, which retains the layout of grid elements in the output document.

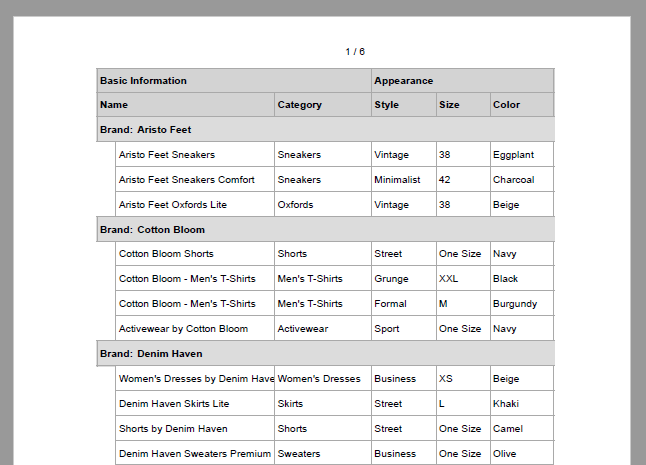

grid-export-to-pdf

Use the following methods to export the control's data to PDF format:

  • DataGridControl.ExportToPdf(string fileName, PageExportOptions? options = null) — Exports data to a file.

  • DataGridControl.ExportToPdf(Stream stream, PageExportOptions? options = null) — Exports data to a stream.

The optional options parameter (of type PageExportOptions) allows you to customize export settings. The PageExportOptions class exposes the following members:

  • PageExportOptions.ExportProgress event — Fires repeatedly during data export. The event's ExportProgressEventArgs.ProgressPercentage parameter indicates the progress as a percentage (0 to 100). You can use this event to display export progress to users in a customized way.

  • PageExportOptions.FitToPageWidth (default is false) — Specifies whether grid columns are stretched to fit the paper width.

  • PageExportOptions.Landscape (default is false) — Specifies whether the page orientation is horizontal (Landscape) or vertical (Portrait).

  • PageExportOptions.Margins (default is 72,72,72,72) — The page margins, in points. 1 point = 1/72 inch.

  • PageExportOptions.PageRange — A string that specifies the range of pages to be exported. You can use the following notations to specify the output page range:

    • "1" — Exports page 1.
    • "1, 4, 8-10" — Exports pages 1, 4, and 8 through 10.

    The default value of the PageRange property is an empty string, which exports all pages.

  • PageExportOptions.PaperKind (default is A4) — The paper size.

  • PageExportOptions.ShowBands property (default is null) — Specifies whether the control's bands are included in the export.

    If ShowBands is null, the setting is specified by the control's DataGridControl.ShowBands property.

  • PageExportOptions.ShowColumnHeaders property (default is null) — Specifies whether the column header panel is included in the export.

    If ShowColumnHeaders is null, the setting is specified by the control's DataGridControl.ShowColumnHeaders property.

Export to CSV Format

The DataGrid control provides the ExportToCsv method to export data to CSV format. CSV (comma-separated values) is a plain text data format to store tabular data. Each record is exported as a text line, in which values are delimited by a separator (typically, a comma).

The following ExportToCsv method overloads are available:

  • DataGridControl.ExportToCsv(string filePath, TextExportMode textExportNode = TextExportMode.Text, string separator = ",", bool quoteStringsWithSeparators = true) — Exports data to a file.

  • DataGridControl.ExportToCsv(Stream stream, TextExportMode textExportMode = TextExportMode.Text, string separator = ",", bool quoteStringsWithSeparators = true) — Exports data to a stream.

The following method parameters allow you to customize export options:

  • textExportMode — The default export mode of cell values.

    Available options include:

    • TextExportMode.Value — Exports cell values. Data formats applied to cell values are not exported.

    • TextExportMode.Text — Exports cell display text. If cell values are formatted in the DataGrid control, the formatted string representation is exported.

      Note

      The export engine only takes into account cell formatting applied using the GridColumn.EditorProperties property.

    You can use the GridColumn.TextExportMode property to override the method's textExportMode parameter for individual columns.

  • separator — A string that specified the separator used to delimit cell values in the output document. The default separator is a comma (",").

  • quoteStringsWithSeparators — Specifies whether to wrap values in quotes (") if they contain the specified separator.

Export to Image Formats

The DataGrid control's ExportToImages method performs a paginated export to an image format (PNG, JPEG, SVG, or WebP). If the control's content is too large to fit a single page, the method paginates the data (splits it into pages) and exports each page as a separate image.

treelist-export-to-images

The target page's format and size are defined by a parameter passed to the method. The ExportToImages method uses the same pagination mechanism as the ExportToPdf method.

  • DataGridControl.ExportToImages(string directory, string fileNameFormat, ImageExportOptions? options = null)
using Eremex.AvaloniaUI.Controls.DataControl;
using Eremex.DocumentProcessing.Printing;

ImageExportOptions options = new ImageExportOptions();
options.Format = MxImageFormat.Svg;
options.FitToPageWidth = false;
options.PaperKind = PaperKind.A4;
options.Margins = new Margins(36, 36, 36, 36);
options.PageRange = "1-2";
dataGrid.ExportToImages(@"c:\images\", "img{0}.svg", options);

Use the ExportToImages method's parameters to customize the page settings, output image format, and file name pattern.

  • directory — Specifies the directory in which to save image files. An exception is raised if the specified directory does not exist.

  • fileNameFormat — Specifies file naming pattern for the output image files.

    The fileNameFormat value should include the {0} placeholder at the position where you need to insert a page number in the generated file names. You can format the page number using the standard and custom numeric format specifiers. Below are examples of fileNameFormat values:

    • "image{0}.png" — Produces files like "image1.png", "image2.png", and so on.
    • "image{0:D3}.svg" — Produces files like "image001.svg", "image002.svg", and so on.

The optional options parameter (of type ImageExportOptions) allows you to customize export settings. The ImageExportOptions class exposes the following members:

  • ImageExportOptions.Format — The output image format (PNG, JPEG, SVG, or WebP).

  • ImageExportOptions.PageBorderColor — The color of the border drawn around each page.

  • ImageExportOptions.PageBorderWidth — The width of the border drawn around each page.

  • PageExportOptions.ExportProgress event — Fires repeatedly during data export. The event's ExportProgressEventArgs.ProgressPercentage parameter indicates the progress as a percentage (0 to 100). You can use this event to display export progress to users in a customized way.

  • PageExportOptions.ShowBands property (default is null) — Specifies whether the control's bands are included in the export.

    If ShowBands is null, the setting is specified by the control's DataGridControl.ShowBands property.

  • PageExportOptions.ShowColumnHeaders property (default is null) — Specifies whether the column header panel is included in the export.

    If ShowColumnHeaders is null, the setting is specified by the control's DataGridControl.ShowColumnHeaders property.

  • PageExportOptions.FitToPageWidth (default is false) — Specifies whether grid columns are stretched to fit the paper width.

  • PageExportOptions.Landscape (default is false) — Specifies whether the page orientation is horizontal (Landscape) or vertical (Portrait).

  • PageExportOptions.Margins (default is 72,72,72,72) — The page margins, in points. 1 point = 1/72 inch.

  • PageExportOptions.PageRange — A string that specifies the range of pages to be exported. You can use the following notations to specify the output page range:

    • "1" — Exports page 1.
    • "1, 4, 8-10" — Exports pages 1, 4, and 8 through 10.
    • "7-" — Exports from page 7 to the end.

    The default value of the PageRange property is an empty string, which exports all pages.

  • PageExportOptions.PaperKind (default is A4) — The paper size.
