Scatter Line Series View

The Scatter Line Series View (CartesianScatterLineSeriesView) connects points with lines. Unlike the Line Series View, the points for the Scatter Line Series View do not need to be sorted by their X-values. Instead, the points are connected in the exact order they appear in the data series.

chart-views-scatter-line-series-view

Create a Scatter Line Series View

To create a Scatter Line Series View, add a CartesianSeries object to the CartesianChart.Series collection, and initialize the CartesianSeries.View with a CartesianScatterLineSeriesView instance.

The following code shows how to create a Scatter Line Series View in XAML and code-behind.

<mxc:CartesianChart x:Name="chartControl">
    <mxc:CartesianChart.Series>
        <mxc:CartesianSeries Name="scatterLineSeries1" DataAdapter="{Binding DataAdapter}" >
            <mxc:CartesianScatterLineSeriesView Color="Red"
                                                ShowMarkers="True"
                                                MarkerSize="4" Thickness="2"/>
        </mxc:CartesianSeries>
    </mxc:CartesianChart.Series>
</mxc:CartesianChart>

CartesianSeries series = new CartesianSeries();
chartControl.Series.Add(series);
List<(double, double)> points = new List<(double, double)>() { (0, 2), (-1, 3), (-2, 0), (2,1), (-2,5) };
// The ScatterDataAdapter allows unsorted points
series.DataAdapter = new ScatterDataAdapter(points);
series.View = new CartesianScatterLineSeriesView()
{
    Color = Avalonia.Media.Colors.Green,
    MarkerSize = 4,
};

Example - Use a Scatter Line Series View to Connect Points in the Data Series

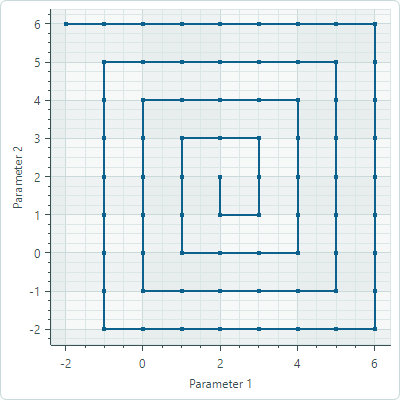

In this example, the Scatter Line Series View connects points that form a square spiral. The ScatterDataAdapter adapter is used to supply data for the chart. The points are connected in the order in which they appear in the data series.

chart-views-scatterLineSeriesView-example

<mx:MxWindow xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:vm="using:ChartScatterLineSeriesView.ViewModels"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:mx="https://schemas.eremexcontrols.net/avalonia"
        xmlns:mxc="https://schemas.eremexcontrols.net/avalonia/charts"
        mc:Ignorable="d" d:DesignWidth="800" d:DesignHeight="450"
        x:Class="ChartScatterLineSeriesView.Views.MainWindow"
        x:DataType="vm:MainWindowViewModel"
        Icon="/Assets/EMXControls.ico"
        Title="ChartScatterLineSeriesView"
        Width="500" Height="500">
    <Design.DataContext>
        <vm:MainWindowViewModel/>
    </Design.DataContext>

    <mxc:CartesianChart x:Name="chartControl">
        <mxc:CartesianChart.Series>
            <mxc:CartesianSeries Name="scatterLineSeries1" DataAdapter="{Binding ScatterLineSeriesVM1.DataAdapter}" >
                <mxc:CartesianScatterLineSeriesView Color="{Binding ScatterLineSeriesVM1.Color}"
                                                    ShowMarkers="True"
                                                    MarkerSize="4" Thickness="2"/>
            </mxc:CartesianSeries>
        </mxc:CartesianChart.Series>
        <mxc:CartesianChart.AxesX>
            <mxc:AxisX Name="xAxis" Title="Parameter 1" />
        </mxc:CartesianChart.AxesX>
        <mxc:CartesianChart.AxesY>
            <mxc:AxisY Title="Parameter 2"/>
        </mxc:CartesianChart.AxesY>
    </mxc:CartesianChart>
</mx:MxWindow>

using Avalonia;
using Avalonia.Media;
using CommunityToolkit.Mvvm.ComponentModel;
using Eremex.AvaloniaUI.Charts;
using System;
using System.Collections.Generic;

namespace ChartScatterLineSeriesView.ViewModels;

public partial class MainWindowViewModel : ViewModelBase
{
    [ObservableProperty] SeriesViewModel scatterLineSeriesVM1;

    public MainWindowViewModel()
    {
        ScatterLineSeriesVM1 = new()
        {
            Color = Color.FromUInt32(0xff0d628d),
            DataAdapter = new ScatterDataAdapter(GenerateSquareSpiralData())
        };
    }

    private List<(double, double)> GenerateSquareSpiralData()
    {
        List<(double, double)> points = new List<(double, double)> ();
        double x = 2, y = 2;
        int stepsPerSide = 1; // Steps before changing direction
        int direction = 3; // 0=right, 1=up, 2=left, 3=down
        int turns = 4;
        double stepSize = 1.0;

        points.Add((x, y));

        for (int i = 0; i < turns * 4; i++) // 4 sides per turn
        {
            for (int step = 0; step < stepsPerSide; step++)
            {
                switch (direction)
                {
                    case 0: x += stepSize; break; // Right
                    case 1: y += stepSize; break; // Up
                    case 2: x -= stepSize; break; // Left
                    case 3: y -= stepSize; break; // Down
                }
                points.Add((x, y));
            }
            direction = (direction + 1) % 4; // Change direction
            if (i % 2 == 1) stepsPerSide++; // Increase steps every 2 turns
        }
        return points;
    }
}

public partial class SeriesViewModel : ObservableObject
{
    [ObservableProperty] Color color;
    [ObservableProperty] ScatterDataAdapter dataAdapter;
}

Data for the Scatter Line Series View

You can use the following data adapter to provide data for Scatter Line Series Views:

ScatterDataAdapter
