Summaries¶

The TreeList control allows you to calculate total summaries for columns. Total summaries are aggregate functions computed across all rows. The control must have simultaneous access to all rows to correctly calculate total summaries.

The main summary calculation features include:

• Built-in summary functions: Sum, Min, Max, Count, and Average.
• Runtime management — Users can click the Σ button in the footer cell to add summaries or invoke the Summary Editor dialog for advanced summary operations.
• Multiple summaries per column — Each column can display multiple summaries calculated across that column's values.
• Cross-column summaries — You can calculate a summary against one column and display it in another.
• Custom summaries — You can handle the CustomSummary event to calculate a custom aggregate function according to your logic.

Enable Total Summaries¶

Total summaries are shown in the control's footer.

Set the ShowTotalSummaries property to true to display the summary footer and enable total summary calculation. The summary footer is positioned at the bottom of the TreeListControl, below all rows. Initially, this footer is hidden.

<mxtl:TreeListControl x:Name="treeList" ShowTotalSummaries="True" AllowDynamicDataLoading="False">...</mxtl:TreeListControl>

The summary footer contains summary cells for all columns. If user summary customization is enabled (default), the summary cells contain the Σ button used to show a summary menu and the summary editor.

Related API

• ShowTotalSummaries — Gets or sets whether the total summary footer is displayed and total summary calculation is enabled.
• TotalSummaryPanelMinHeight — Gets or sets the minimum height of the total summary footer.

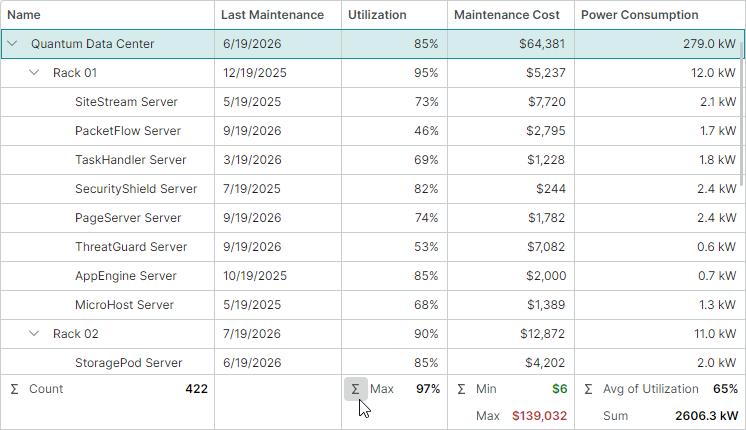

Define Total Summaries¶

Use the TotalSummaries collection to define total summaries. Items in this collection are instances of the SummaryItem class. Each SummaryItem object specifies the field to summarize, the summary type, the column in which to display the result, and other settings.

xmlns:mxdc="clr-namespace:Eremex.AvaloniaUI.Controls.DataControl;assembly=Eremex.Avalonia.Controls"

<mxtl:TreeListControl x:Name="treeList" ShowTotalSummaries="True" AllowDynamicDataLoading="False">
    <mxtl:TreeListControl.TotalSummaries>
        <mxdc:SummaryItem FieldName="Name" SummaryType="Count" />
        <mxdc:SummaryItem FieldName="Utilization" SummaryType="Average" ShowInColumn="PowerConsumption" />
        <mxdc:SummaryItem FieldName="Utilization" SummaryType="Max" />
        <mxdc:SummaryItem FieldName="MaintenanceCost" SummaryType="Min" />
        <mxdc:SummaryItem FieldName="MaintenanceCost" SummaryType="Max" />
        <mxdc:SummaryItem FieldName="PowerConsumption" SummaryType="Sum" />
    </mxtl:TreeListControl.TotalSummaries>
</mxtl:TreeListControl>

Related API

• TotalSummaries — Provides access to the collection of summary items (SummaryItem objects) that define total summaries.
• SummaryItem.FieldName — Gets or sets the name of the data field whose values are used to calculate the summary.
• SummaryItem.Name — Gets or sets the summary item's name, used to identify it. You can retrieve summary items by name from the TotalSummaries collection.
• SummaryItem.Tag — Gets or sets custom data associated with this SummaryItem.
• SummaryItem.ShowInColumn — Gets or sets the field name of the column that displays the summary value. If this property is not set, the summary is displayed in the column bound to FieldName.
• SummaryItem.SummaryType — Gets or sets the type of the aggregate function (Sum, Min, Max, Count, or Average).

• SummaryItem.Label — Gets or sets a custom label to display instead of the default summary label. The default summary label displays the name of the summary function. If the summary is displayed in another column (see ShowInColumn), the summary label also displays the caption of the column bound to SummaryItem.FieldName.



User Summary Customizations¶

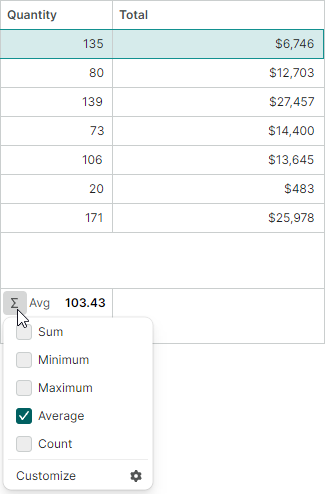

The control allows users to edit summaries at runtime by default. In this mode, summary cells display the Σ button, used to invoke the summary menu:

Users can use this menu to:

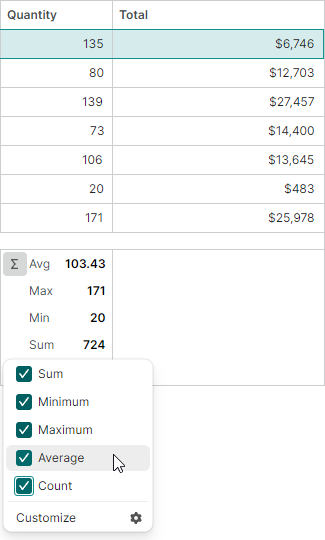

• Add or remove summaries by toggling checkboxes next to summary functions.



• Select Customize to invoke the Summary Editor dialog.

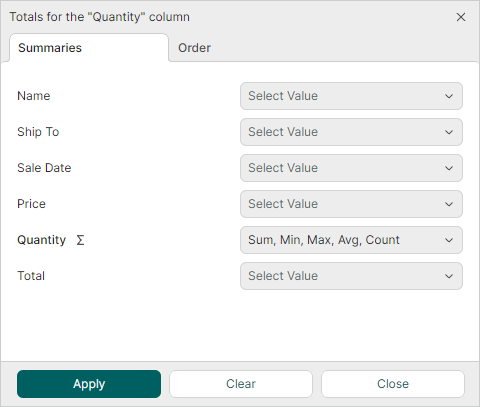

  In this dialog's Summaries tab, users can create cross-column summaries (summaries calculated for one column, but shown in another column).

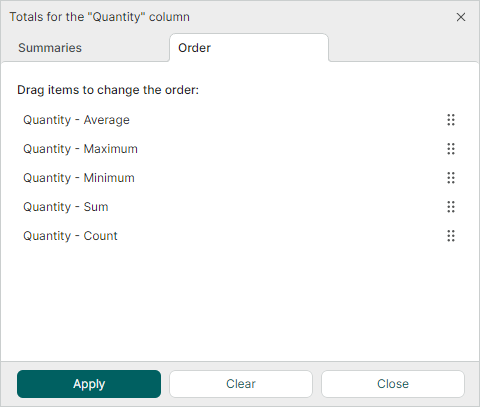

  The Order tab allows users to change the display order of the existing summaries.



Related API

• AllowEditingTotalSummaries — Gets or sets whether users can edit total summaries.

  This property only affects user capabilities to modify summaries and does not impact summary calculations performed in code.

Custom Summaries¶

Custom summaries allow you to calculate aggregate values using your own logic.

To add a custom summary, do the following:

• Create a SummaryItem object and set its SummaryItem.SummaryType property to Custom.

• Add this SummaryItem to the TotalSummaries collection.

• Handle the CustomSummary event to manually calculate a value for this SummaryItem.

  Set the e.SummaryValue event parameter to supply your custom result.

  While handling the CustomSummary event, use the e.Nodes collection to iterate through target nodes (rows).

Example - Calculate a custom total summary¶

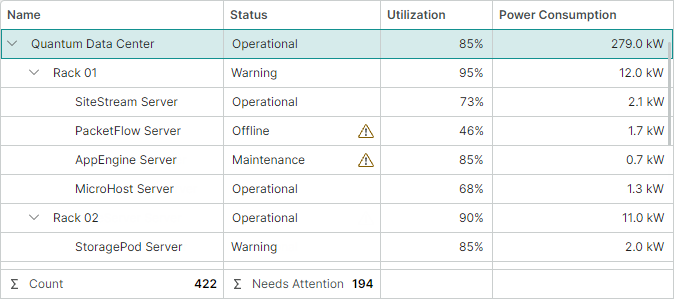

The following example creates a custom total summary (called "Needs Attention") that calculates the number of assets requiring attention. These assets have a status of Maintenance, Degraded, Offline, or Decommissioned.

<!-- XAML -->
<mxtl:TreeListControl x:Name="treeList" CustomSummary="OnCustomSummary">
    <mxtl:TreeListControl.TotalSummaries>
        <mxdc:SummaryItem FieldName="Status" SummaryType="Custom" Label="Needs Attention"/>
        <mxdc:SummaryItem FieldName="Name" SummaryType="Count" />
    </mxtl:TreeListControl.TotalSummaries>
</mxtl:TreeListControl>

// Code-behind
void OnCustomSummary(object sender, TreeListCustomSummaryEventArgs e)
{
    int assetsRequiringAttention = 0;
    foreach (var node in e.Nodes)
    {
        var status = (AssetStatus)treeList.GetCellValue(node, e.SummaryItem.FieldName);
        if (status is AssetStatus.Maintenance or AssetStatus.Degraded or AssetStatus.Offline or AssetStatus.Decommissioned)
            assetsRequiringAttention++;
    }
    e.SummaryValue = assetsRequiringAttention;
}

Related API

• CustomSummary — Occurs when a summary value is calculated. Use the SummaryValue event parameter to supply a custom summary value.

Get Summary Values¶

You can retrieve calculated summary values in code using the following API:

• TreeListControl.GetTotalSummaryValue — Returns the calculated value of a total summary.

object? totalValue = treeList.GetTotalSummaryValue(summaryItem);
