Cartesian Chart¶

The CartesianChart control allows you to create diagrams using the Cartesian coordinate system.

cartesian-chart

The control's main features include:

An unlimited number of data series
Supported diagram types (views): Line, Scatter Line, Point (with SVG marker support), Area, Step Line, Bar, Candlestick, and more.
Multiple axes support
Swapping X and Y axes
Reversing axes
Multiple axis types: Numeric, Date-Time, Time Span, Qualitative, and Logarithmic
Scrolling and zooming all axes at the same time
Scrolling and zooming individual axes

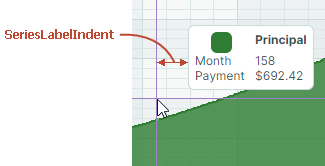

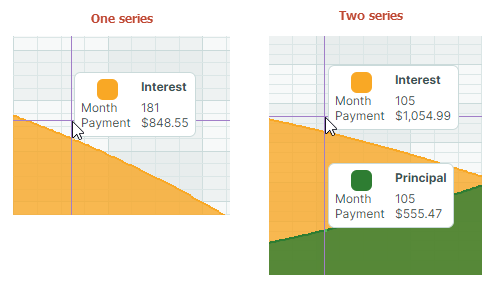

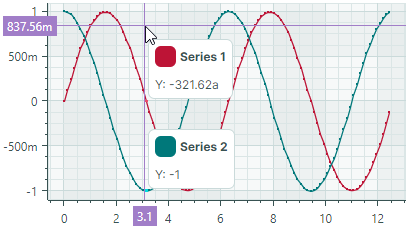

Crosshair
High-performance when displaying large data
Real-time data visualization
Strips and constant lines
Empty points (gaps)
Using the MVVM design pattern to provide data and customize chart options
Displaying rapidly changing real-time data. Use a special data adapter to implement a moving viewport

Get Started¶

Chart Control's Elements¶

The main elements of the chart control are series and axes.

Series — Provides data and specifies how to visualize this data. You can plot as many series as you need within the same chart control. See Series for more information.

Axes — A typical cartesian chart displays two axes: the X-axis and Y-axis. You can also add additional axes to the chart when it plots two or more series. Each series can be associated with its own axis. See Axes.

Series¶

A series provides data to plot by the chart control, and specifies the series view (visual presentation of this data).

The CartesianSeries class encapsulates a series for the CartesianChart control. To add series to the chart, use the CartesianChart.Series collection. You can also populate the chart with series using the MVVM design pattern. Use the CartesianChart.SeriesSource and CartesianChart.SeriesTemplate properties for this purpose. See the following link for more information: Get Started with Charts - MVVM Pattern.

The following code defines one series in the CartesianChart.Series collection.

<mxc:CartesianChart>
    <mxc:CartesianChart.Series>
        <mxc:CartesianSeries DataAdapter="{Binding Series.DataAdapter}">
            <mxc:CartesianLineSeriesView Color="{Binding Series.Color}" Thickness="2" />
        </mxc:CartesianSeries>
    </mxc:CartesianChart.Series>
    <!-- ... -->
</mxc:CartesianChart>

chart-cartesian-sample

Series Data¶

You can supply data for a chart control's series using Data Adapters.

<mxc:CartesianSeries DataAdapter="{Binding Series.DataAdapter}">
    <!-- ... -->
</mxc:CartesianSeries>

A Data Adapter is an object that implements the ISeriesDataAdapter interface. Typically you do not need to implement this interface manually. Eremex Charts ship with multiple Data Adapters for various data types (numeric, date-time, and qualitative). Choose a Data Adapter based on your requirements.

Below you'll find Data Adapters grouped by the type of the X values:

Numeric X Values:

SortedNumericDataAdapter
FormulaDataAdapter
ScatterDataAdapter
NumericRangeDataAdapter

Date and Time X Values:

SortedDateTimeDataAdapter
DateTimeRangeDataAdapter
SortedTimeSpanDataAdapter
TimeSpanRangeDataAdapter
CandlestickDataAdapter (for the Candlestick Series View)
SummaryCandlestickDataAdapter (for the Candlestick Series View)

Qualitative X Values:

QualitativeDataAdapter
QualitativeRangeDataAdapter

Empty Points (Gaps)¶

CartesianChart supports empty points. These are data points with undefined values. The chart control leaves visible gaps in a series when it encounters empty points.

chart-emptypoints

To specify an empty data point, set the data point's value to double.NaN, double.PositiveInfinity, or double.NegativeInfinity.

Series Visibility¶

Use the Series.Visible property to hide a series.

chart1.Series[0].Visible = !chart1.Series[0].Visible;

Series Views¶

CartesianChart supports multiple series views (diagram types):


Line Series View (`CartesianLineSeriesView` object) Plots points connected with lines.	Scatter Line Series View (`CartesianScatterLineSeriesView` object) Connects points in the order in which they appear in the data series.
Point Series View (`CartesianPointSeriesView` object) Plots individual points.	Area Series View (`CartesianAreaSeriesView` object) Connects points with lines and paints filled areas.
Step Line Series View (`CartesianStepLineSeriesView` object) Connects points with horizontal and vertical line segments.	Step Area Series View (`CartesianStepAreaSeriesView` object) Connects points with horizontal and vertical line segments, and paints filled areas.
Range Area Series View (`CartesianRangeAreaSeriesView` object) Fills the area between the two Y-values of a data series.	Stacked Area Series View (`CartesianStackedAreaSeriesView` object) These Views render filled areas stacked on each other to show absolute relationships between data series.
Full-Stacked Area Series View (`CartesianFullStackedAreaSeriesView` object) These Views render filled areas stacked on each other to show proportional relationships between data series.	Bar Series View (`CartesianSideBySideBarSeriesView` object) Visualizes data as a set of rectangular bars.
Range Bar Series View (`CartesianSideBySideRangeBarSeriesView` object) Draws rectangular bars between the two Y-values of a data series.	Candlestick Series View (`CartesianCandlestickSeriesView` object) A financial chart that describes price movements of an asset. For each data point, the chart displays a set of four values, the Open, Close, High and Low prices.
Lollipop Series View (`CartesianLollipopSeriesView` object) Presents data as points (markers) connected with a horizontal or vertical axis by thin lines.

To specify a view for a series, define a corresponding ...SeriesView object as the content of the CartesianSeries object. In code behind, use the CartesianSeries.View property to specify a series view.

The following sample assigns the 'Line Series View' to a series.

<mxc:CartesianSeries DataAdapter="{Binding Series.DataAdapter}">
    <mxc:CartesianLineSeriesView Color="{Binding Series.Color}" Thickness="2" />
</mxc:CartesianSeries>

Axes¶

The CartesianChart control automatically creates cartesian axes (the X-axis and Y-axis) if you do not define them manually. If you need to customize axes in XAML, define AxisX and/or AxisY objects in the CartesianChart.AxesX/CartesianChart.AxesY collections, and then modify settings of these axes.

<mxc:CartesianChart>
    <!-- ... -->

    <mxc:CartesianChart.AxesX>
        <mxc:AxisX ShowTitle="False">
        </mxc:AxisX>
    </mxc:CartesianChart.AxesX>

    <mxc:CartesianChart.AxesY>
        <mxc:AxisY Title="t(°C)" TitlePosition="WithLabels">
            <mxc:AxisYRange AlwaysShowZeroLevel="False" />
        </mxc:AxisY>
    </mxc:CartesianChart.AxesY>
</mxc:CartesianChart>

Swap the X and Y Axes¶

The default orientation of the axes in the Cartesian Chart control is horizontal for the X axes, and vertical for the Y axes. Use the CartesianChart.SwapAxes property to transpose the axes. This property is supported for all series view types.

The following images demonstrate how the SwapAxes property changes the layout of axes for linear and bar diagrams.

chart-swap-axes-linear-chart

chart-swap-axes-bars-chart

Reverse the Axis Direction¶

Use the Axis.Reverse property to invert the direction of the X and Y axis.

false (default) — Values increase from left to right for the X axis, and from bottom to top for the Y axis.
true — Values increase from right to left for the X axis, and from top to bottom for the Y axis.

chart-axis-y-direction

<mxc:CartesianChart.AxesY>
    <mxc:AxisY Title="Axis Y" Reverse="True"/>
</mxc:CartesianChart.AxesY>

Axis Value Range¶

Place AxisXRange/AxisYRange objects as the content of the AxisX/AxisY objects to specify range settings of the axes. The AxisXRange/AxisYRange objects allow you to customize the total value range, visible value range, visibility of the zero level, etc.

<mxc:CartesianChart.AxesX>
    <mxc:AxisX ShowTitle="False" >
        <mxc:AxisXRange MinSideMargin="0.15" MaxSideMargin="0.15"/>
    </mxc:AxisX>
</mxc:CartesianChart.AxesX>
<mxc:CartesianChart.AxesY>
    <mxc:AxisY Title="Amplitude (dB SPL)">
        <mxc:AxisYRange AlwaysShowZeroLevel="False" />
    </mxc:AxisY>
</mxc:CartesianChart.AxesY>

AutoCorrectWholeRange (default is true) — Gets or sets whether the total axis range is calculated automatically based on the series data.

To set a custom total axis range, disable the AutoCorrectWholeRange option and then use the WholeMin and WholeMax properties.

SynchronizeVisualRange — Gets or sets whether the visible axis range is set to the total axis range when the latter is changed.
AlwaysShowZeroLevel (for AxisYRange objects only) (default is true) — Gets or sets whether the total axis range is automatically adjusted to include the zero level. See WholeMax.
WholeMax — Gets or sets the maximum value of the total axis range. The WholeMin property specifies the minimum value.

Disable the AutoCorrectWholeRange property to use the WholeMin and WholeMax properties.

If the AlwaysShowZeroLevel option is enabled (default behavior), the zero level is forcibly included in the total axis range.

Example - Show and Hide the Zero Level¶

Consider the following example in which the WholeMin and WholeMax properties define custom bounds for the total axis range. The range automatically includes the zero level because the AlwaysShowZeroLevel property is enabled.
```
<mxc:CartesianChart.AxesY>
    <mxc:AxisY ShowTitle="False">
        <mxc:AxisYRange WholeMin="100" WholeMax="350" AutoCorrectWholeRange="False" AlwaysShowZeroLevel="True" />
    </mxc:AxisY>
</mxc:CartesianChart.AxesY>
```
Disable the AlwaysShowZeroLevel property to limit the total axis range by the WholeMin and WholeMax properties, while ignoring the zero level.
```
<mxc:AxisYRange WholeMin="100" WholeMax="350" AutoCorrectWholeRange="False" AlwaysShowZeroLevel="False" />
```
WholeMin — Gets or sets the minimum value of the total axis range. See WholeMax for more information.
VisualMax — Gets or sets the maximum value of the currently visible axis range. The VisualMin property specifies the minimum value.
VisualMin — Gets or sets the minimum value of the currently visible axis range.
MaxSideMargin — Gets or sets the amount of empty space between the rightmost (or topmost) data point and the edge of the chart area, expressed as a fraction of the total data range. For example, a value of 0.1 adds a margin equal to 10% of the range.

For the Y axis, the MaxSideMargin property is not in effect when the AlwaysShowZeroLevel property is true and the zero level is displayed at the topmost edge. Set the AlwaysShowZeroLevel property to false to resolve the issue.
MinSideMargin — Gets or sets the amount of empty space between the leftmost (or bottommost) data point and the edge of the chart area, expressed as a fraction of the total data range. For example, a value of 0.1 adds a margin equal to 10% of the range.

For the Y axis, the MinSideMargin property is not in effect when the AlwaysShowZeroLevel property is true and the zero level is displayed at the bottommost edge. Set the AlwaysShowZeroLevel property to false to resolve the issue.

chart-axisrange-sidemargin

Axis Scale¶

An axis scale defines the type of scale units and various axis display options. The image below demonstrates a few scale types:

chart-scales

To specify the scale settings for axes, use the AxisX.ScaleOptions and AxisY.ScaleOptions properties.

Customize Scale Settings for an X Axis¶

Use the AxisX.ScaleOptions property to change the scale settings for an X axis. This property is of the base ScaleOptions type.

To modify the scale settings, set the AxisX.ScaleOptions property to one of the following objects based on the type of the X values of the series:

NumericScaleOptions — Numeric data scale. Use this scale type if the X values provided by the series are numeric values.

<mxc:AxisX Title="Frequency">
    <mxc:AxisX.ScaleOptions>
        <mxc:NumericScaleOptions
            LogarithmicBase="{Binding AxisX.LogarithmicBase}"
            LabelFormatter="{Binding FrequencyFormatter}" />
    </mxc:AxisX.ScaleOptions>
</mxc:AxisX>

DateTimeScaleOptions — DateTime data scale. Use this scale type if the X values provided by the series are DateTime values. The DateTimeScaleOptions.MeasureUnit property allows you to specify the time unit (axis unit) for the axis scale: Millisecond, Second, Minute, Hour, Day, Week, Month, Quarter, or Year
```
<mxc:AxisX ShowTitle="False">
    <mxc:AxisX.ScaleOptions>
        <mxc:DateTimeScaleOptions MeasureUnit="Day" />
    </mxc:AxisX.ScaleOptions>
</mxc:AxisX>
```
TimeSpanScaleOptions— TimeSpan data scale. Use this scale type if the X values provided by the series are TimeSpan values. The TimeSpanScaleOptions.MeasureUnit property allows you to specify the time unit for the axis scale: Millisecond, Second, Minute, Hour, or Day.
```
<mxc:AxisX>
    <mxc:AxisX.ScaleOptions>
        <mxc:TimeSpanScaleOptions MeasureUnit="Minute" />
    </mxc:AxisX.ScaleOptions>
</mxc:AxisX>
```

QualitativeScaleOptions — Qualitative data scale. Use this scale type if the X values provided by the series are qualitative values (text strings).

<mxc:AxisX >
    <mxc:AxisX.ScaleOptions>
        <mxc:QualitativeScaleOptions GridSpacing="1" />
    </mxc:AxisX.ScaleOptions>
</mxc:AxisX>

Customize Scale Settings for an Y Axis¶

Use the AxisY.ScaleOptions property to modify the scale settings of the Y axis. This property is of the NumericScaleOptions type.

<mxc:AxisY Title="Amplitude (dB SPL)">
    <mxc:AxisY.ScaleOptions>
        <mxc:NumericScaleOptions LabelFormatter="{Binding MyCustomLabelFormatter}"/>
    </mxc:AxisY.ScaleOptions>
</mxc:AxisY>

Format Axis Labels¶

The ScaleOptions.LabelFormatter property allows you to specify an object that formats axis display values in a custom manner. You can implement a custom label formatter based on a function/expression using the Eremex.AvaloniaUI.Charts.FuncLabelFormatter object.

The following example implements a custom label formatter for DateTime values.

charts-custom-label-formatter

<mxc:AxisX Name="salesAxis" Title="Sales">
    <mxc:AxisX.ScaleOptions>
        <mxc:DateTimeScaleOptions MeasureUnit="Month" LabelFormatter="{Binding MonthFormatter}" />
    </mxc:AxisX.ScaleOptions>
</mxc:AxisX>

public partial class MainWindowViewModel : ViewModelBase
{
    // ...
    [ObservableProperty] FuncLabelFormatter monthFormatter = new(o => String.Format("{0:MMM} {0:yy}", o));
}

Multiple Axes¶

A typical cartesian chart has one X and one Y axis. You can add any number of additional X and Y axes when required. This is helpful when you display multiple series, and want to show its own X and/or Y axis for each series.

cartesian-chart-multiple-axes

Do the following to link a series with an axis:

Set the Axis.Key property of the axis to a unique ID (string).
Set the series's AxisXKey/AxisYKey property to the value of the Axis.Key property.

The following example adds an X axis and binds it to the lineSeries series.

<mxc:CartesianSeries Name="lineSeries" DataAdapter="{Binding LineSeries.DataAdapter}"
  AxisXKey="lineSeriesAxis">
    <mxc:CartesianLineSeriesView Color="{Binding LineSeries.Color}" />
</mxc:CartesianSeries>

<mxc:CartesianChart.AxesX>
    <!-- ... -->
    <mxc:AxisX Position="Far" Title="Expenses"
       Key="lineSeriesAxis">
        <mxc:AxisX.ScaleOptions>
            <mxc:NumericScaleOptions />
        </mxc:AxisX.ScaleOptions>
    </mxc:AxisX>
</mxc:CartesianChart.AxesX>

Scroll and Zoom¶

Users can zoom and scroll the entire view and individual axes with the mouse. They can also zoom into a specific rectangle or a value range.

Scroll and zoom all axes simultaneously¶

Scroll and zoom individual axes¶

Zoom into a specific region and axis value range¶

chart-zoom-into-rectangle

See the following topic for more information: Scroll and Zoom in a Chart Control

Axis Settings¶

The following list summarizes display and behavior settings of cartesian axes:

ConstantLines and ConstantLinesSource — Allows you to paint constant lines for specific values. See Constant Lines and Strips.
EnableScrolling — Allows a user to scroll an axis with a mouse drag operation.
EnableZooming — Allows a user to zoom an axis.
InterlacingColor - The color used to paint interlaced strip lines (when the ShowInterlacing option is enabled).
MinorCount — Specifies the number of minor tickmarks and grid lines.
Position — Specifies the position of the axis. Available options include: Near (the X-axis is displayed at the bottom, and the Y-axis is displayed at the chart's left edge), and Far (the X-axis is displayed at the top, and the Y-axis is displayed at the chart's right edge).
ShowAxisLine — Specifies the visibility of the axis line.
ShowInterlacing — Specifies whether to paint interlaced strip lines between major gridlines.
ShowLabels — Specifies the visibility of the labels corresponding to major tickmarks.
ShowMajorGridlines — Specifies the visibility of the grid lines corresponding to major tickmarks.
ShowMajorTickmarks — Specifies the visibility of the major tickmarks.
ShowMinorGridlines — Specifies the visibility of the grid lines corresponding to minor tickmarks.
ShowMinorTickmarks — Specifies the visibility of the minor tickmarks.
ShowTitle — Specifies the visibility of the axis title (the Title property).
Strips and StripsSource — Allows you to fill ranges between specific values. See Constant Lines and Strips.
Thickness — The thickness of the axis line.
Title — Gets or sets the title for the axis.
TitlePosition — Specifies the position of the axis title.

Constant Lines and Strips¶

The CartesianChart control includes support for constant lines and strips. They allow you to highlight specific values and value ranges along the axes.

Constant Lines¶

Constant lines are vertical or horizontal lines that are drawn perpendicular to the axes. They serve as visual markers to highlight specific values along the axes. Use the Axis.ConstantLines or Axis.ConstantLinesSource property to specify constant lines. Each constant line is encapsulated by a ConstantLine object.

The following code creates a horizontal constant line that indicates the value of 85 along the Y axis.

chart-constantline

<mxc:CartesianChart.AxesY>
    <mxc:AxisY Title="t(°C)" TitlePosition="WithLabels">
        <mxc:AxisY.ConstantLines>
            <mxc:ConstantLine Title="Overheat 85°C" AxisValue="85" Color="#BD1436"/>
        </mxc:AxisY.ConstantLines>
    </mxc:AxisY>
</mxc:CartesianChart.AxesY>

The Axis.ConstantLinesSource property allows you to initialize constant lines from a collection of objects defined in a View Model. To create ConstantLine objects from the underlying data objects, use the Axis.ConstantLineTemplate property to specify a template. See the Strips and Constant Lines demo for an example.

Constant Line Settings¶

ConstantLine.AxisValue — The axis value associated with the constant line.
ConstantLine.Color — The color to paint the constant line.
ConstantLine.ShowBehind — Specifies whether to paint the constant line below (default) or above the series.
ConstantLine.ShowTitle — Specifies whether to show (default) or hide the title (See the Title option).
ConstantLine.Thickness — The thickness of the constant line.
ConstantLine.Title — A title to paint next to the constant line. The TitlePosition option specifies the position of the title.
ConstantLine.TitleIndent — The horizontal and vertical distance of the title from the line.
ConstantLine.TitlePosition — The placement of the title relative to the line. Available options include: NearAboveLine, NearBelowLine, FarAboveLine and FarBelowLine.

Constant Strips¶

Constant strips allow you to highlight specific value ranges along the axes. Similar to constant lines, strips are drawn perpendicular to the axes. You can specify strips using the Axis.Strips and Axis.StripsSource properties. Each strip is encapsulated by a Strip object.

The following code creates a strip that highlights a range of Y values between 40 and 65. The strip is filled with a semi-transparent light green color. Note that if you use an opaque color for the strip, it will obscure the chart control's grid lines.

chart-strip

<mxc:CartesianChart.AxesY>
    <mxc:AxisY Title="t(°C)" TitlePosition="WithLabels">
        <mxc:AxisY.Strips>
            <mxc:Strip AxisValue1="40" AxisValue2="65" Color="#4043C927" />
        </mxc:AxisY.Strips>
    </mxc:AxisY>
</mxc:CartesianChart.AxesY>

The Axis.StripsSource property allows you to initialize strips from a collection of objects defined in a View Model. To create Strip objects from the underlying data objects, use the Axis.StripTemplate property to specify a template.

Strip Settings¶

ConstantLine.AxisValue1 — Specifies the first (start or end) value of the range along the axis
ConstantLine.AxisValue2 — Specifies the second (end or start) value of the range along the axis.
ConstantLine.Color — The color used to fill the strip.

Tip

Use a semi-transparent color to allow grid lines to be seen beneath the strip.

Convert Between Diagram Coordinates and Screen Coordinates¶

Sometimes you may need to translate from chart coordinates to screen coordinates, and vice versa. The following methods allow you to accomplish this task:

CartesianChart.DiagramPointToScreenPoint — Converts coordinates of a chart point to screen coordinates. The chart point is addressed by the X and Y axes, and the values along these axes.
CartesianChart.ScreenPointToDiagramPoint — Converts screen coordinates to the coordinates of a point within the chart control. The object returned by the method allows you to obtain the chart coordinates, or determine if the screen coordinates are within the control's viewport.
